IEC Standard 0.5% Accuracy Automatic Demagnetization Transformer DC Winding Resistance Tester

Name: IEC Standard 05 Accuracy Automatic Demagnetization Transformer DC Winding Resistance Tester
Brand: MINGYANG
Price: 900 USD

China IEC Standard 0.5% Accuracy Automatic Demagnetization Transformer DC Winding Resistance Tester wholesale

Price : 900 usd

Packaging Details : carton

Resolution : 1μΩ

Test Current : <5ma,40ma,200ma,1a,3a,10a

Model Number : MY RA

Measurement accuracy : 0.5%

Product Name : DC Resistance Tester

Supply Ability : 1000pcs/month

Operating Temperature : -10℃~40℃

Place of Origin : China Mainland

Voltage : AC220V±10%

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Time Resolution : 1s

Delivery Time : 1 week

Accuracy Class : 0.5%

Frequency : 50Hz±1Hz

Current Resolutio : 1μΩ

Battery Parameters : 12.6V/7.8AH

Working power supply : AC220V ± 10%, 50Hz ± 1Hz

Working Humidity : <90%RH

Working Temperature : -10℃-40℃

MOQ : 1

Weight : 12kg

Brand Name : MINGYANG

Measurement range : 1-1999μΩ

Measuring Range : 1-1999μΩ

Volume : 380*350*260 mm

Warranty : 2 Year

Display mode : three-and-a-half-digit LCD

Contact Now

IEC Standard 0.5% Accuracy Automatic Demagnetization Transformer DC Winding Resistance Tester

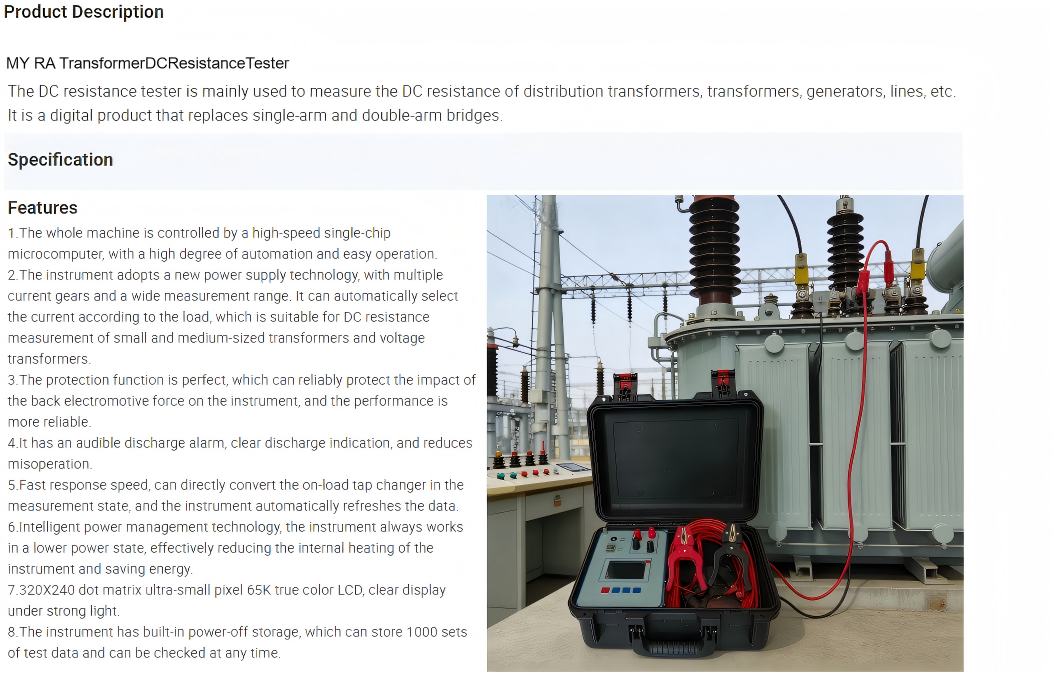

Product Overview

The DC resistance tester is primarily designed for measuring DC resistance in distribution transformers, power transformers, generators, and electrical lines. This digital instrument serves as a modern replacement for traditional single-arm and double-arm bridges, offering comprehensive electrical maintenance and repair capabilities for measuring circuit resistance and contact resistance.

Basic Info.

Model NO.

MY RA

Max Diameter of Workpiece

<500mm

Mass Scope of Workpiece

<900kg

Type

Strength Testing Machine

Maxcapacity

<1000KN

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Static Load

Display

LED

Control

Manual Control

Weight

0-100Kg

Power Source

AC220V

Oil Cylinder Position

Top

Measurement Accuracy

± (0.2%+2)

Work Temperature

-10°C~ 50°C

Power Frequency

50±1Hz

Work Power

110V-400V Adjustable

Transport Package

Wooden Box with Foam Inside

Specification

48.00cm * 35.00cm * 27.00cm

Trademark

MINGYANG

Origin

Hebei, China

HS Code

9030332000

Production Capacity

100

Key Features

High-speed microcontroller control with full automation and user-friendly operation
Advanced power supply technology with multiple current ranges and wide measurement scope
Temperature conversion capability for both copper and aluminum materials with touch input for winding temperature
Comprehensive protection system against back electromotive force for enhanced reliability
Audible discharge alarm with clear visual indicators to prevent operational errors
Rapid response enables on-load tap changer conversion during measurement with automatic data refresh
Intelligent power management for reduced internal heating and energy efficiency
High-resolution 320x240 dot matrix 65K true color LCD display with excellent visibility in bright conditions
Built-in data storage for 1000 test records with instant retrieval capability
Customizable operating language to meet specific customer requirements
