Delivery Time : 1 week
Protection Class : IP55
Charging time : About 4 hr
Model Number : MY-ZL
Voltage : 220 V, 110 V
Place of Origin : China Mainland
Warranty : 2 YEARS
Price : 2400usd
Packaging Details : carton
Place of origin : Hubei, China
Application : Electrical Testing
Supply Ability : 1000pcs/month
Customized support : OBM, ODM, OEM
Use time : More than 8 hr
Payment Terms : L/C,D/A,D/P,T/T,Western Union
Accuracy : ±0.5%
Charging voltage : 16.8V
Brand Name : MINGYANG
Type : Testing Machine
MOQ : 1
Power : electric
Accuracy Class : High Accuracy
The DC Winding Resistance Tester is an essential instrument for transformer testing, including semi-finished product testing, finished product testing, installation commissioning, and electrical preventive maintenance testing. This handheld device effectively identifies manufacturing defects and operational hazards such as poor welding, loose connections, missing units, wire breaks, and other potential issues in transformer coils.
Designed to meet rapid measurement requirements, our DC Winding Resistance Tester incorporates powerful new technology with compact size, lightweight design, and high output current capabilities. Controlled by a single-chip microcomputer, the instrument features high automation levels, automatic discharge functions, and delivers high-precision testing with straightforward operation for fast transformer measurements.
| Parameter | Specification | Remarks |
|---|---|---|
| Test Current | 5A, 10A, 20A, 50A, 100A | |
| Measurement Range | 50μΩ~100mΩ (100A) 100μΩ~400mΩ (50A) 200μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) |
Accuracy: ± (0.2% + 2 bytes) |
| Resolution | 0.1μΩ | |
| Display | LCD | 4 significant digits |
| Data Storage | 1000 Sets | |
| Operating Temperature | 0℃~40℃ | <90% RH, No Dew |
| Power Supply | AC 220V±10V, 50Hz±1 Hz | Fuse 10A |
| Power Consumption | 1000W | |
| Dimensions | 440*245*395 (mm) | |
| Weight | Host: 19.8KG Cable Box: 7.5KG |
Company Profile










|
|

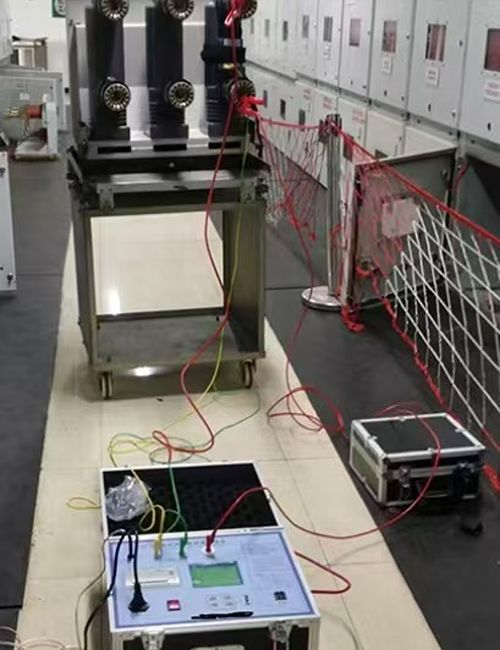

Portable Battery Powered Micro Ohmmeter Transformer Coil DC Resistance Test Instrument Images |
