MY-105 5000A high current generator (referred to as current booster) The high current generator here is a test equipment developed by our company. It integrates the advantages of similar products at home and abroad, adopts numerical control technology, has strong anti-interference ability, and Compared with the previous generation of current boosters, due to the use of low power consumption, large capacity self-coupling voltage regulators and high magnetic permeability iron cores, the converters have the advantages of large output power, small size and light weight. Mainly used for thermal relay, motor protector, contactor, circuit breaker, air switch, switchgear, circuit breaker, protection screen calibration; used for primary busbar protection and the transformation ratio of various current transformers, etc. It is widely used in scientific research, production and electrical test sites of electric power, railway, petrochemical, metallurgy and mining enterprises.
Basic Info.
Type
Primary Current Injection Tester
Display
Primary Current, Second Current and Turn Ratio
Oil Cylinder Position
Under
Measurement Second Current Range
0~6A
Place of Origin
Hubei,China
Working Environment
Temperature-10~40
Application
Primary Current Injection Tester
Transport Package
Wooden Cage
Specification
Wooden Cage
Production Capacity
500 Set Per Week
Main functions
It can output 0~30000A current for a long time
The action time of the test equipment can be synchronized
Automatic identification of normally open and normally closed contacts
Several calibrations can be connected in series at the same time to improve work efficiency
Performance characteristics
Using beautiful and elegant PVC panel
Display the test value of primary current and secondary current directly, which is convenient for test observation and record.
High measurement accuracy 0.5 class
High power, small size and strong load capacity
Small size and light weight, the volume is only 30% to 70% of similar products, and it is very convenient to carry.
Operation
(1)After the wiring is completed, check it again to see if there is any wiring error and whether the connectors are in good contact.
(2)During the test, if there is any abnormal phenomenon such as ignition and no display when starting up, immediately turn off the power and recheck the wiring.
(3)During the actual wiring, the current output terminal should form a loop, otherwise the instrument will not output current.
(4)The current riser has random output wires; the output external copper wires are selected according to 10A/mm2. (The standard configuration is two 1-meter test leads)
(5)The capacity of the equipment is designed for short-time work of 5 minutes.
|
Input
|
AC 50Hz, 380V
|
|
Output single-phase
|
0-4000A AC large current; the current can be adjusted smoothly and continuously, and the precision is higher than 0.5 grade
|
|
Output current mode
|
true effective value is continuously adjustable
|
|
Output waveform
|
standard sine wave
|
|
Output opening voltage
|
20V
|
|
Current accuracy
|
each current can be adjusted smoothly and continuously, and the accuracy is higher than 0.5. The current and voltmeter display is a true effective value, with high precision and high stability
|
|
Current stability
|
0.2%
|
|
Current waveform distortion:
|
THD 1%
|
|
Protection settings:
|
overcurrent, overvoltage
|
|
It can measure the current action time of the tested component, and can record the locking action time synchronously. Normally open and normally closed contacts are automatically judged
|
|
Measuring range
|
0. 001S---99999.999S,precision:0. 001S
|
|
|
|
|
Power
|
80KVA
|
Company Profile
Wuhan Mingyang Industrial Technology Co., Ltd. has a professional sales and technical team to deliver premium pre-sales consultation and full technical support.
We maintain an efficient after-sales team to timely resolve all product and technical issues for global customers.
Founded in 2008 and based in Wuhan, China, we are a high-tech enterprise specialized in R&D, production, sales, OEM/ODM customization and after-sales service of power testing and high-voltage inspection equipment.

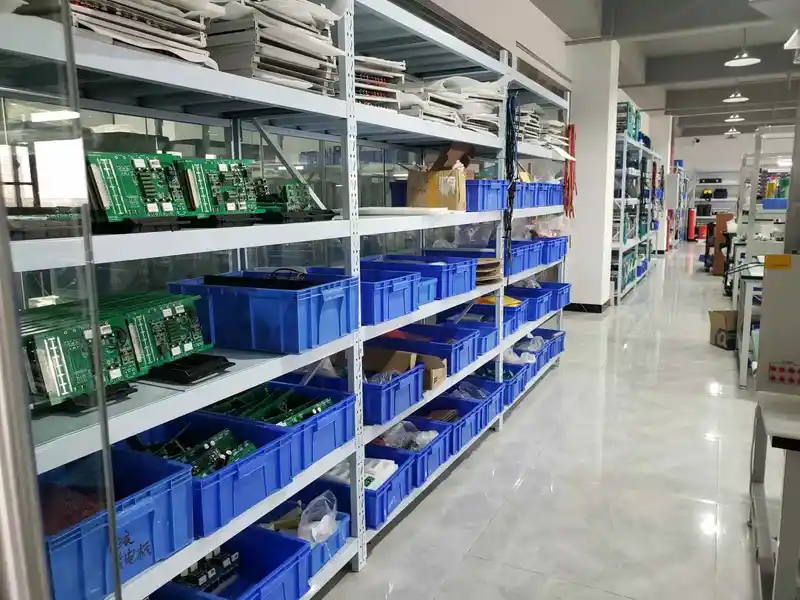

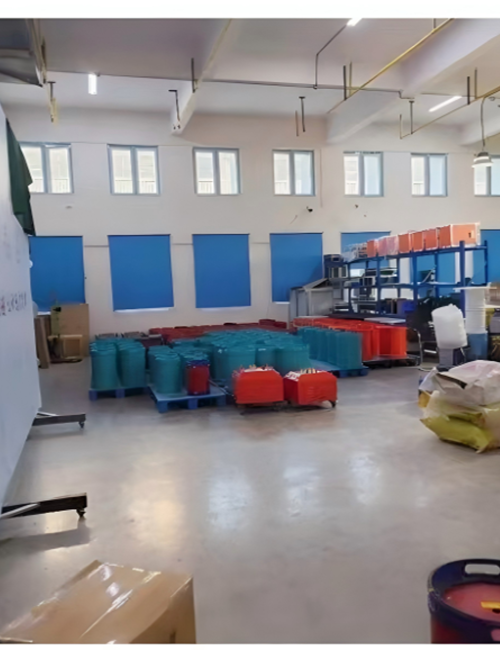

We keep enhancing independent innovation, upgrading factory facilities and adopting digital management systems. With reliable quality and good reputation, we have built worldwide customer networks and gained global trust. We sincerely look forward to long-term cooperation with you for mutual development.
